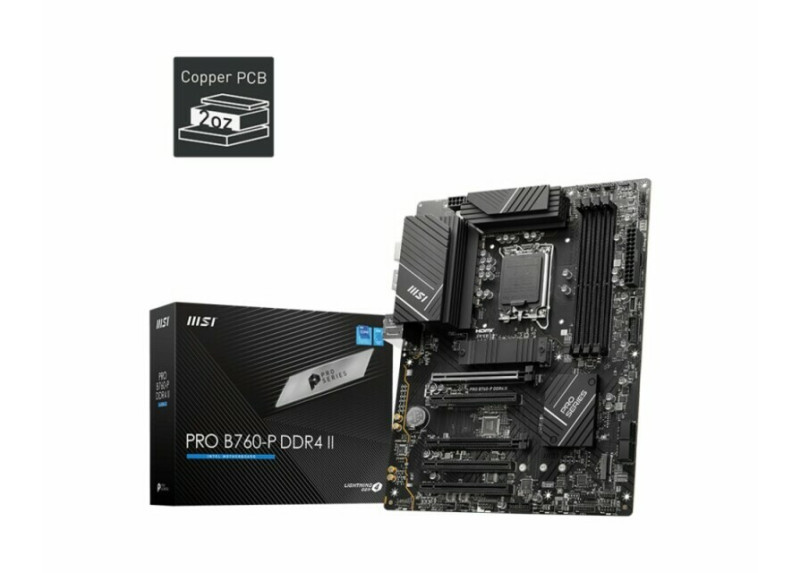

MSI 1700 PRO B760-P DDR4 II - DDR4/2xM.2/DP/HDMI/ATX

Datasheet

Audio-uitgangskanalen

7.1 kanalen

Moederbord form factor

ATX

Aantal USB 2.0-poorten

2

PCI Express x16 (Gen 3.x) slots

3

Breedte

243,8 mm

Aantal HDMI-poorten

1

Hoogte

308,4 mm

HDMI versie

2.1

Processor socket

(Intel) LGA 1700

Aantal M.2 (M) slots

2

Compatibele processors

12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Aantal DisplayPorts

1

Ondersteunde geheugen types

DDR4-SDRAM

DisplayPort versie

1.4

Aantal geheugenslots

4

Aantal poorten USB 3.2 Gen 2 (3.1 Gen 2) Type C

1

Geheugen kanaal

Duaal

PCI Express x16 (Gen 4.x) slots

2

Supported memory clock speeds

5333,5200,5066,5000,4800,46004400,4266,4200,4000,3800,37333600,3466,3400,3333,3200,29332666,2400,2133 MHz

Maximum intern geheugen

128 GB

Aantal SATA III connectors

4

Aantal poorten USB 3.2 Gen 1 (3.1 Gen 1) Type A

2

Ethernet interface type

2.5 Gigabit Ethernet

Chipset moederbord

Intel B760

Specifieke referenties

ean13

4711377128889
